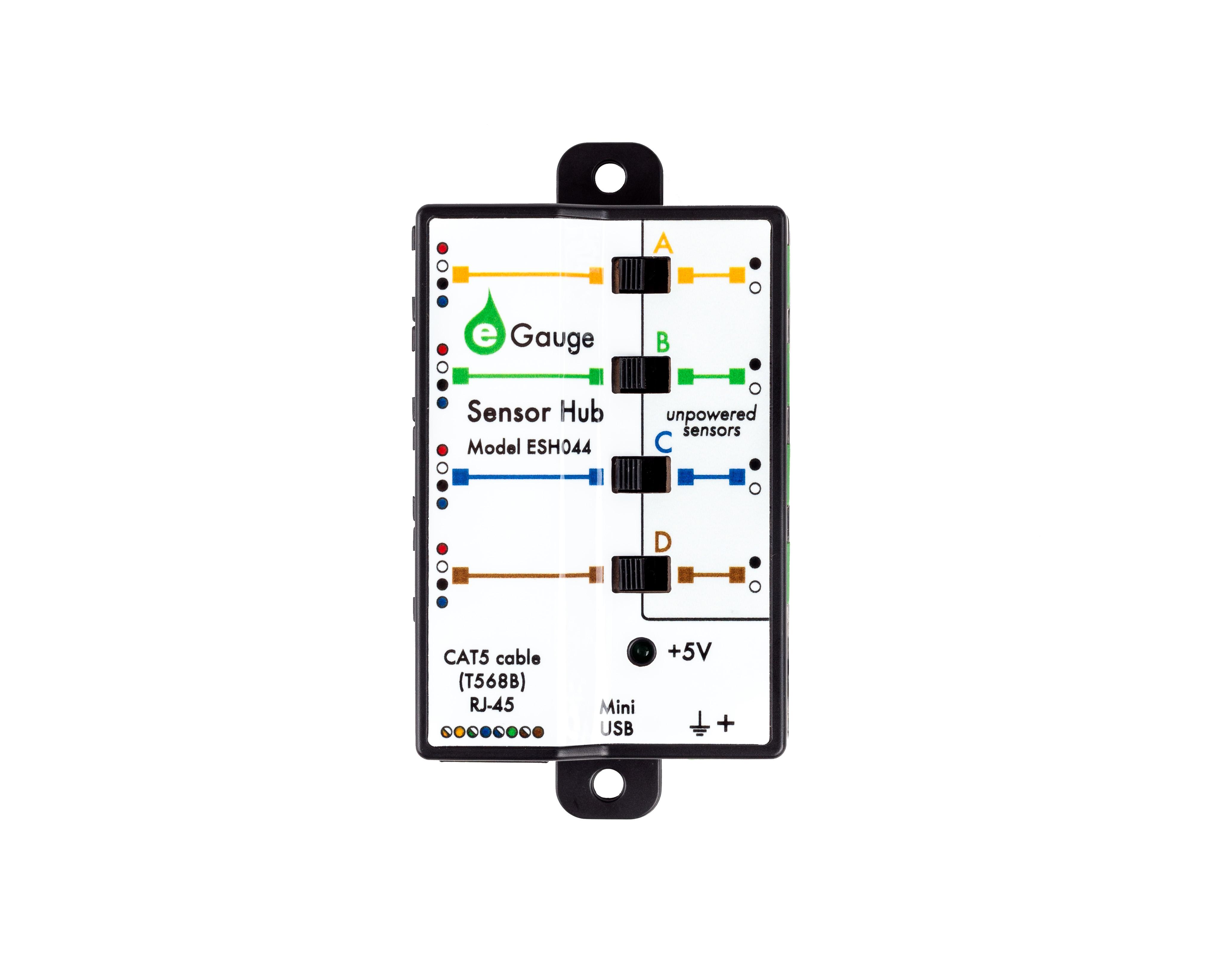

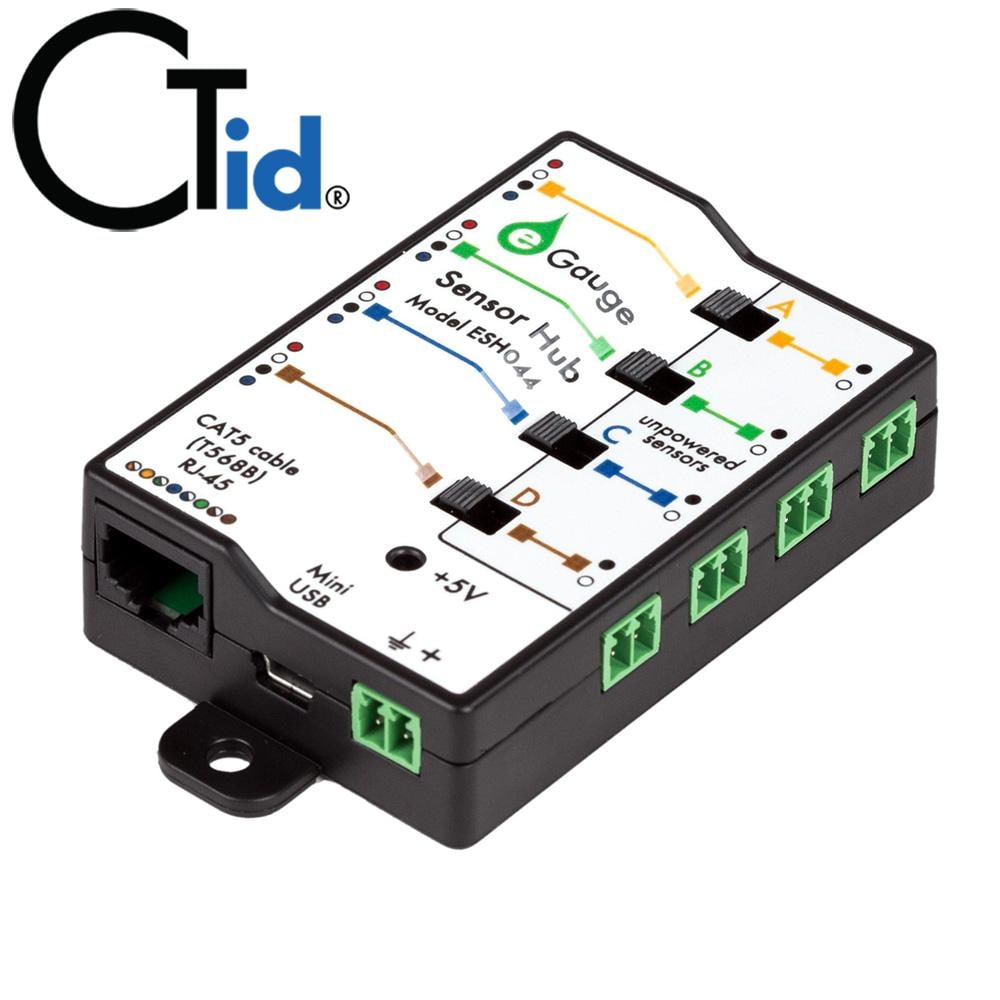

Sensor Hub (ESH044)

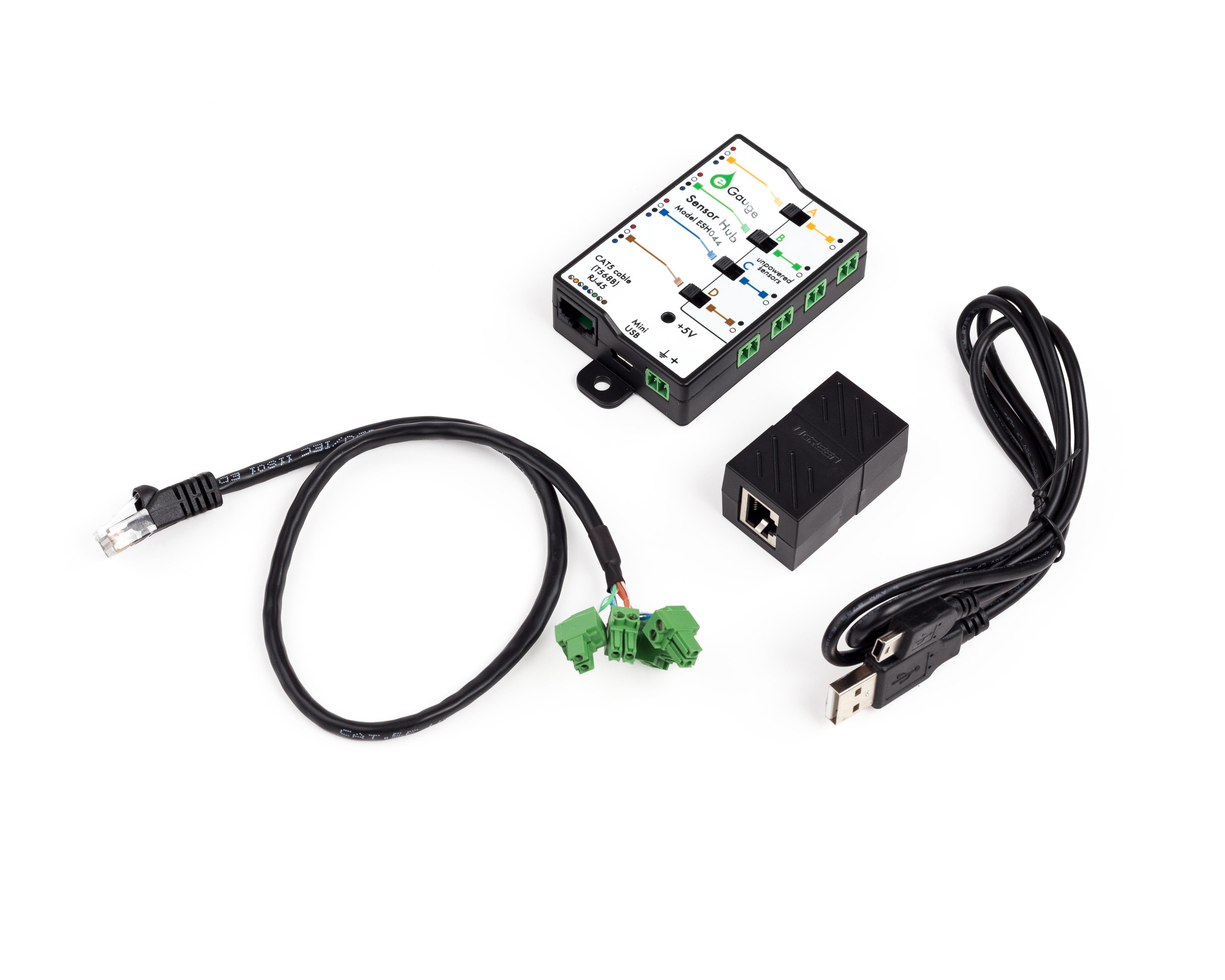

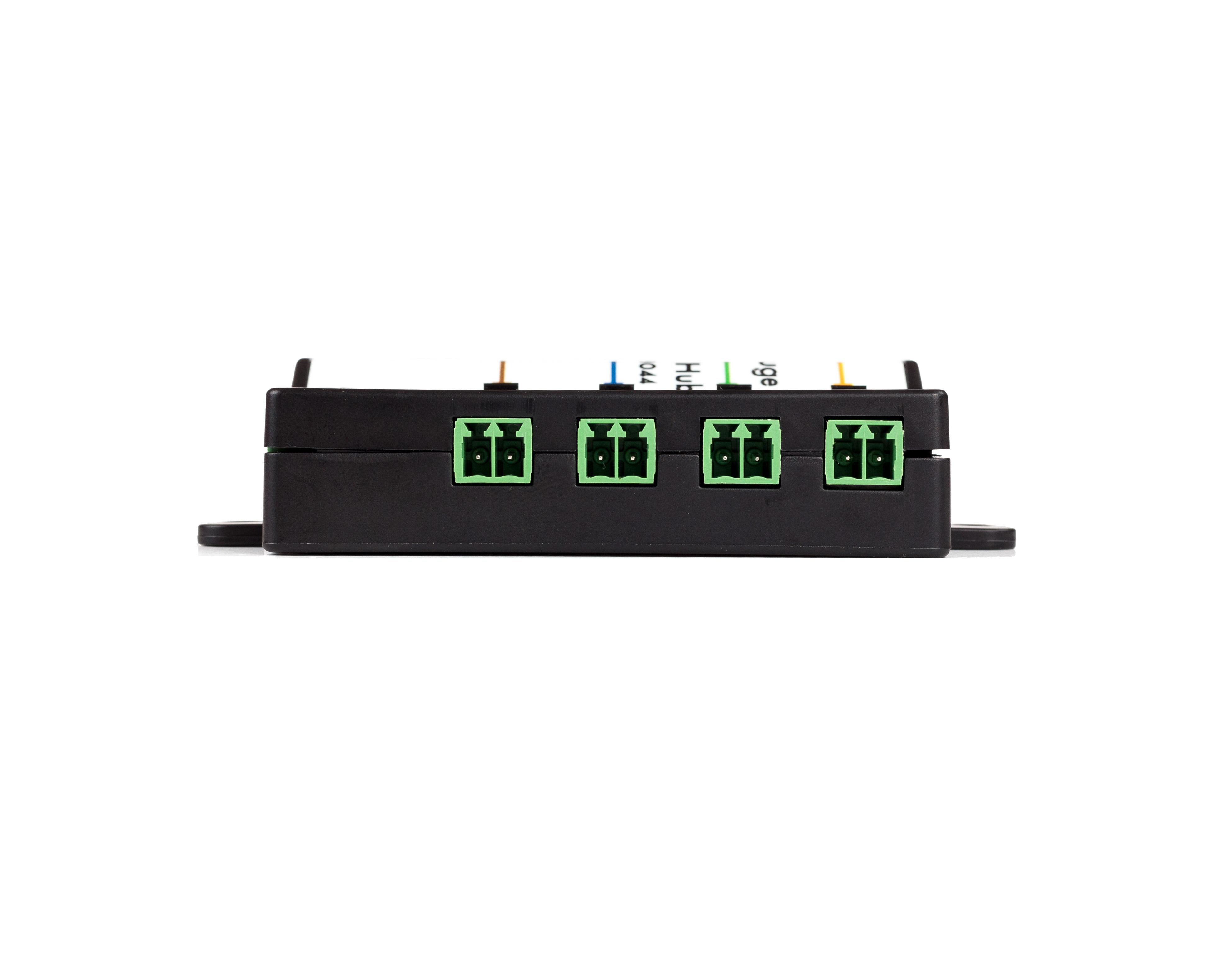

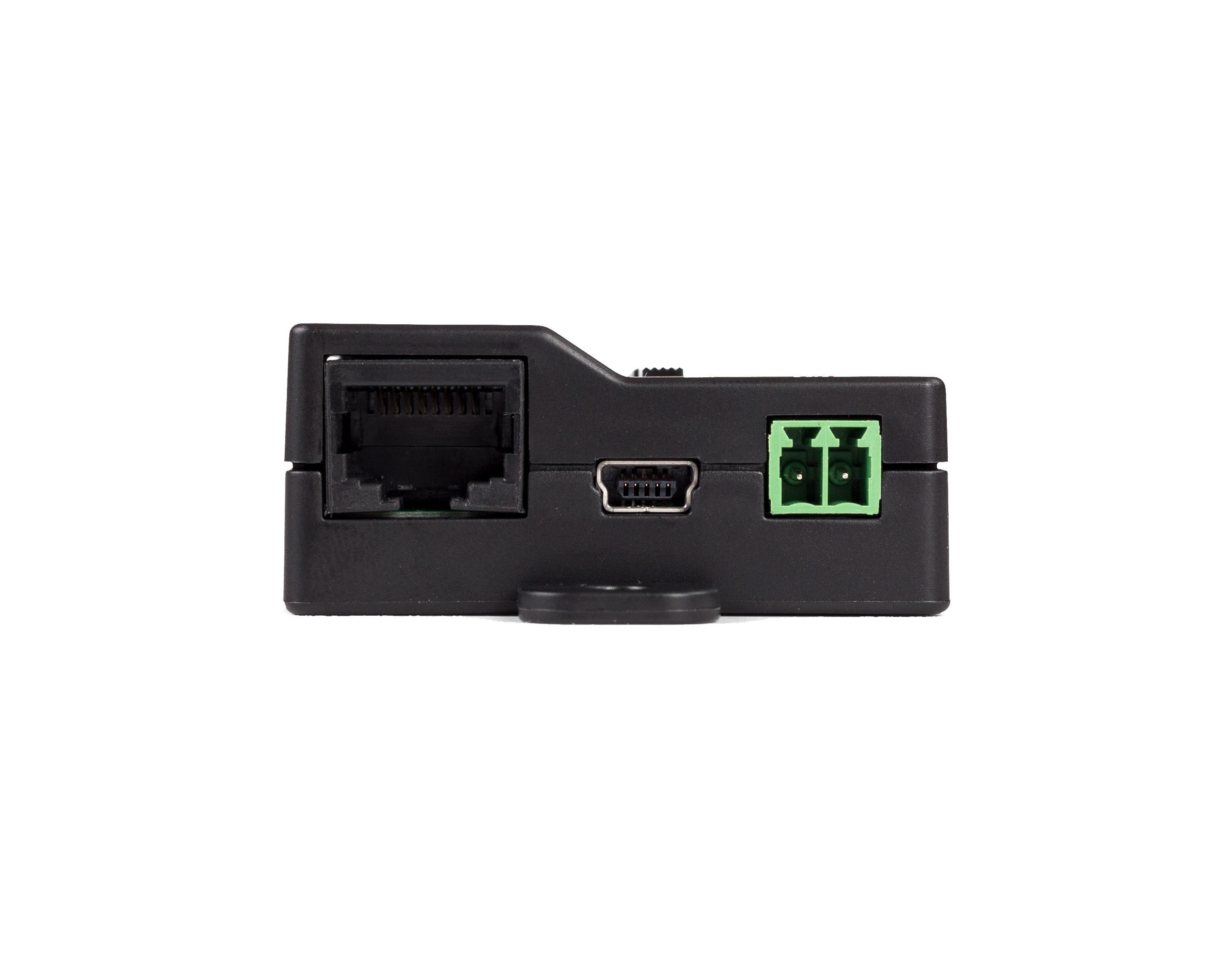

The eGauge Sensor Hub (ESH044) allows you to easily integrate active CTid-enabled sensors into your EG4xxx (Pro or Core) energy meter.  It allows you to connect up to 4 powered or unpowered sensors and wire them directly to your eGauge using the included RJ45 sensor whip.  The sensor whip can be extended over long distances with standard CAT5 or CAT6 Ethernet cable using the included RJ45 coupler.  Power for active sensors is provided through a mini-USB input or a 2-pin power connector.

The mounting tabs can be used to secure the hub inside an enclosure.  Additionally, they can be removed and an optional DIN mounting kit can be used for mounting on DIN rail.
